System Architecture & Access Control

Designed Belajarbina as a sales site → controlled LMS environment where access is granted through purchase status and routed into the correct learning environment to ensure predictable behavior and low-maintenance operations.

Goal Convert buyers into eligible learners with controlled access (no completed order = no access)

Constraint Tiered access + time/module restrictions + caching behavior risk in a single LMS environment

Focus Architecture separation, access gate rules, lifecycle clarity, long-term maintainability

1) System Architecture

How the sales site and learning environments are structured to avoid runtime complexity.

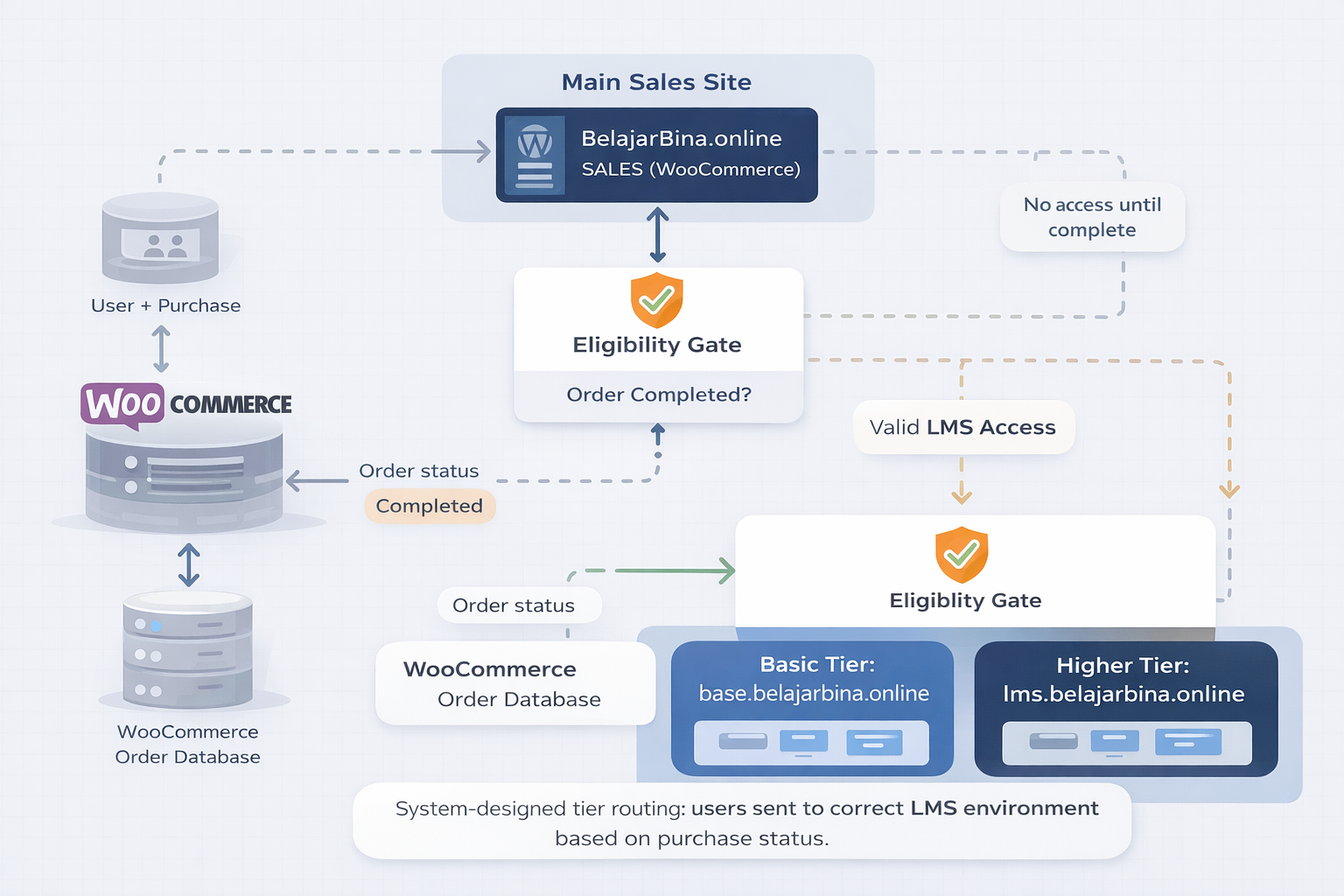

Belajarbina system architecture diagram — High-level structure: Sales site (WooCommerce) → eligibility gate → tier-based LMS environments.

Separated concerns: Sales & payments live on the main domain; learning delivery lives on LMS subdomains
WooCommerce order status is the source of truth for access eligibility
Tier-based routing reduces conditional logic and improves predictability under caching
Architecture designed for low intervention (no constant backend reconfiguration)

2) Access Control Logic

The rule set that determines who gets access, when, and where.

Eligibility Gate

User purchases an entry pass on the main site
Access becomes valid only when order is Completed
Completed status prevents unauthorized access and reduces edge cases

Tier Routing

Basic tier routed to base.belajarbina.online
Higher tier routed to lms.belajarbina.online
Separation reduces “conditional access” conflicts in a single environment

Session Behavior

Access checks remain consistent across sessions
Less reliance on fragile per-page conditional rendering
Improves reliability when caching is present

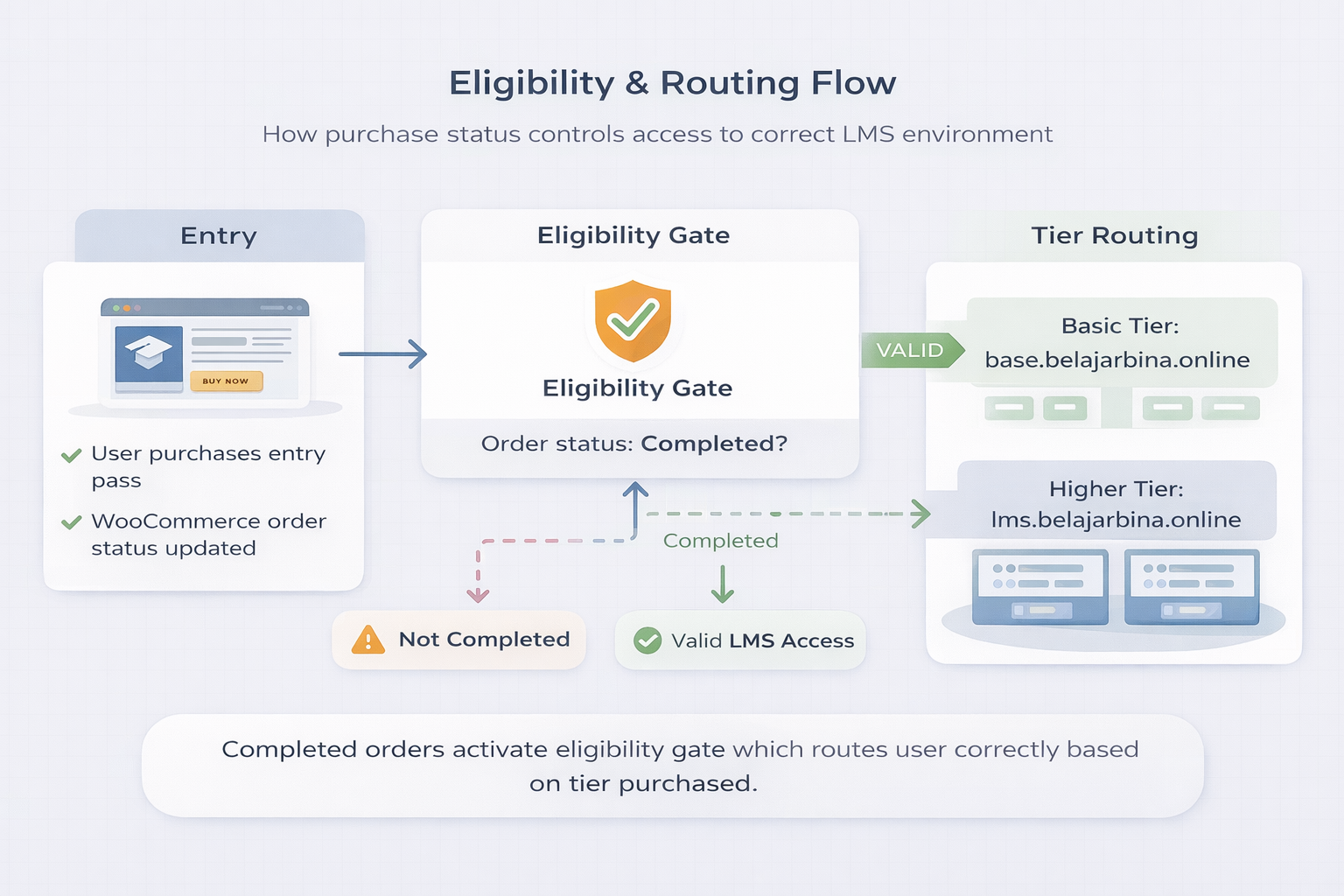

Belajarbina access logic / eligibility flow — Access is gated by purchase completion and routed by tier to reduce runtime complexity.

3) User Lifecycle Flow

Lifecycle framing: how users move through purchase → learning → expiry/upgrade.

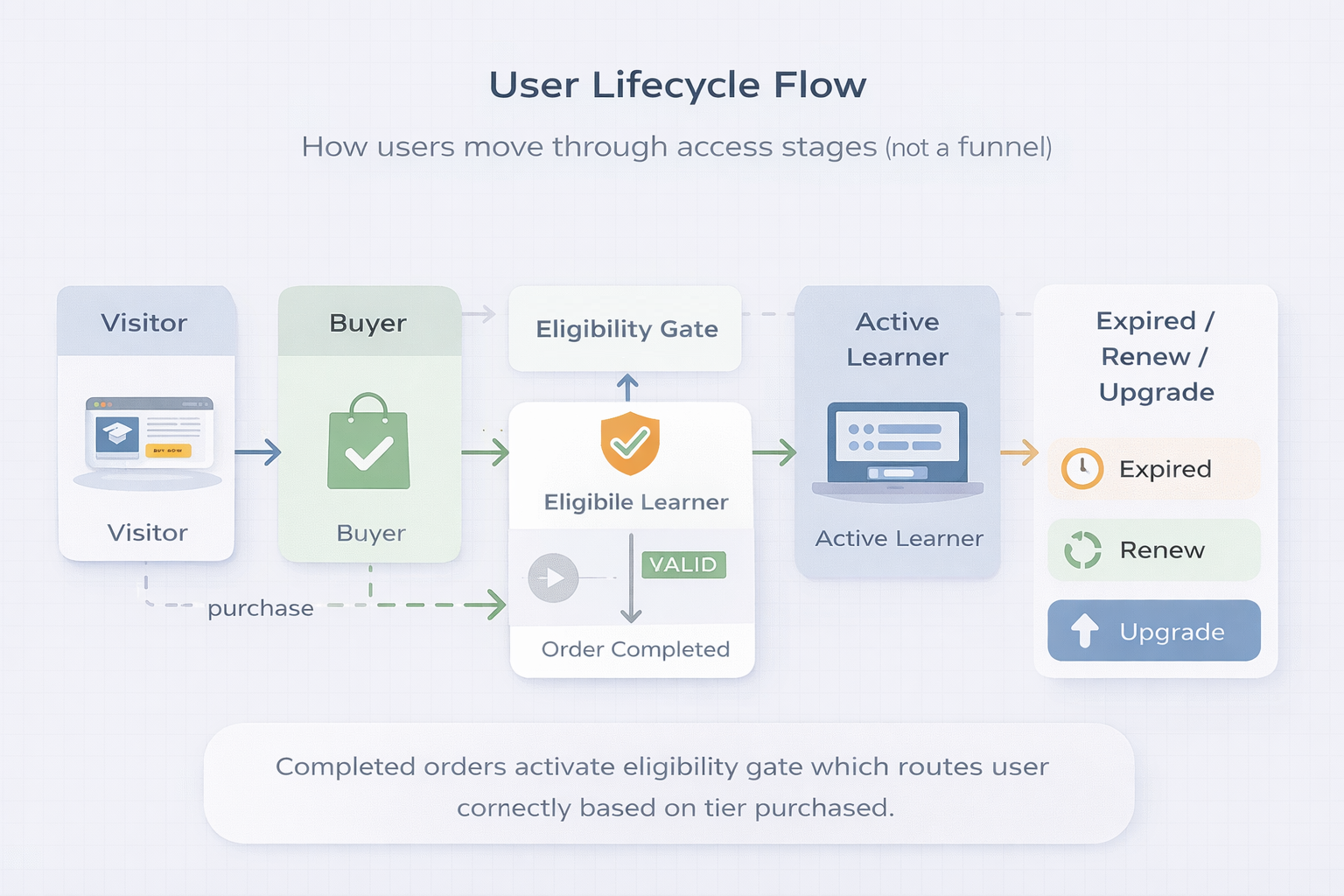

Belajarbina user lifecycle diagram — Visitor → Buyer → Eligible learner → Active learner → Expired / renew / upgrade (based on access type).

Outcome (Qualitative)

The work prioritized predictable access behavior and maintainability over complex conditional rules.

Predictable access behavior: fewer edge cases caused by tier/time/module restrictions
Reduced runtime complexity: separation lowered dependence on conditional rendering inside one LMS instance
Lower maintenance: architecture minimizes repeated backend configuration work

Resulting system behavior

The platform runs as a stable sales → learning pipeline, where eligibility is clearly gated and tier complexity is handled structurally (separation), not through endless conditional rules.
